Our Products

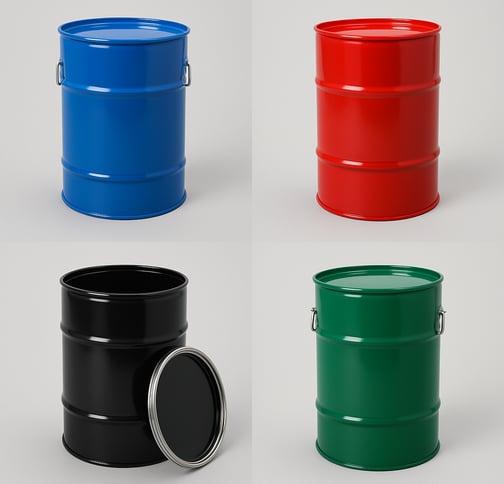

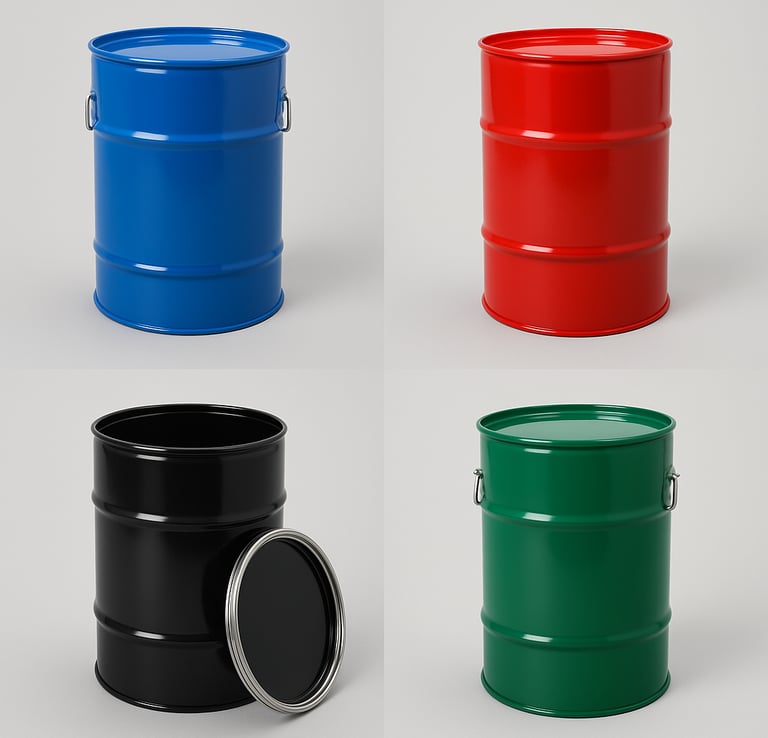

FOT (Full Open Top) MS Drum

Our Full Open Top (FOT) MS Drums are built to deliver versatility and ease of use across a range of industries, including chemicals, paint, food products, and powders. With wide openings and lock ring closures, they allow quick filling, cleaning, and safe sealing.

Manufacturing Specifications:

Height Range: 9" to 28"
Diameter Range: 11" to 18"
Die Set Sizes Available: 11", 14", 16", and 18"
Sheet Thickness (Gauge): 0.6mm to 1.2mm
Material: High-Quality Cold Rolled Mild Steel
Finishing: Glossy powder coat or liquid paint

Product Types Available:

Plain (uncoated)
Epoxy Coated
With or without galvanized lock ring
UN-certified options available

Key Features:

Leak-proof and tamper-resistant
Ideal for viscous materials, pastes, and solid contents
Custom color, embossing, and logo printing available
Manufactured using automated top-notch die press machinery

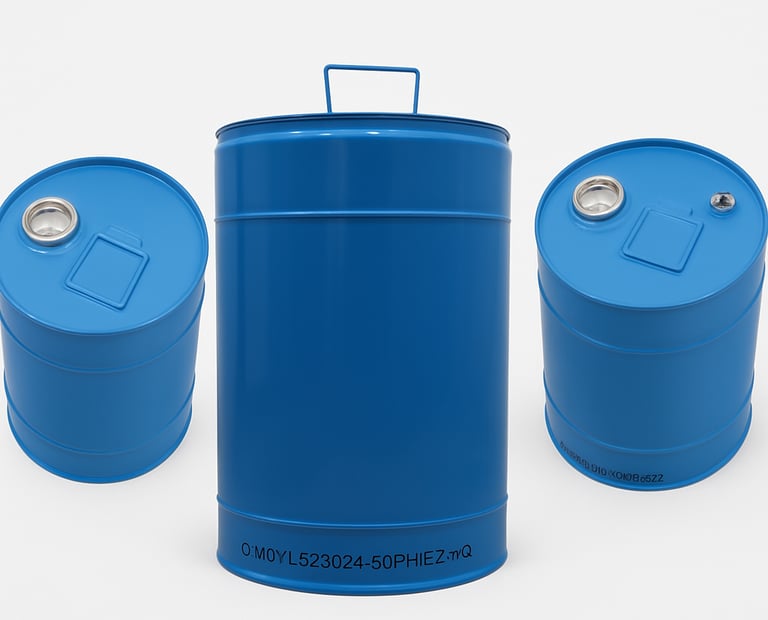

Narrow Mouth MS Drum

Perfect for liquids requiring precision dispensing, our Narrow Mouth MS Drums feature different spout sizes for controlled flow and compatibility with industry-standard fittings. Designed for oils, lubricants, solvents, and hazardous liquids, these drums ensure high sealing integrity and handling ease.

Manufacturing Specifications:

Height Range: 9" to 28"
Diameter Range: 11" to 18"
Die Set Sizes Available: 11", 14", 16", and 18"
Material Thickness: 0.6mm to 1.2mm
Finish: Glossy with optional color coding
Spout Fitting Material: Steel or HDPE-compatible threads

Opening Types Available:

63mm Screw Neck
¾" & 1¾" Bung
2" & 4" Large Neck for High Viscosity Liquids

Key Features:

Air-tight sealing with plug & cap compatibility
Internally cleaned and leak-tested
Top handle for manual handling
Long-lasting corrosion resistance with optional epoxy lining

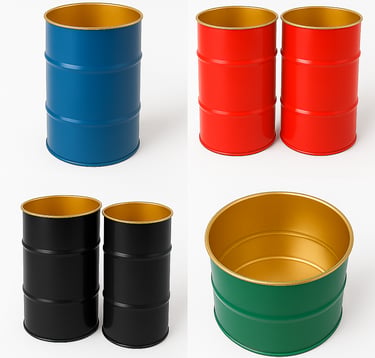

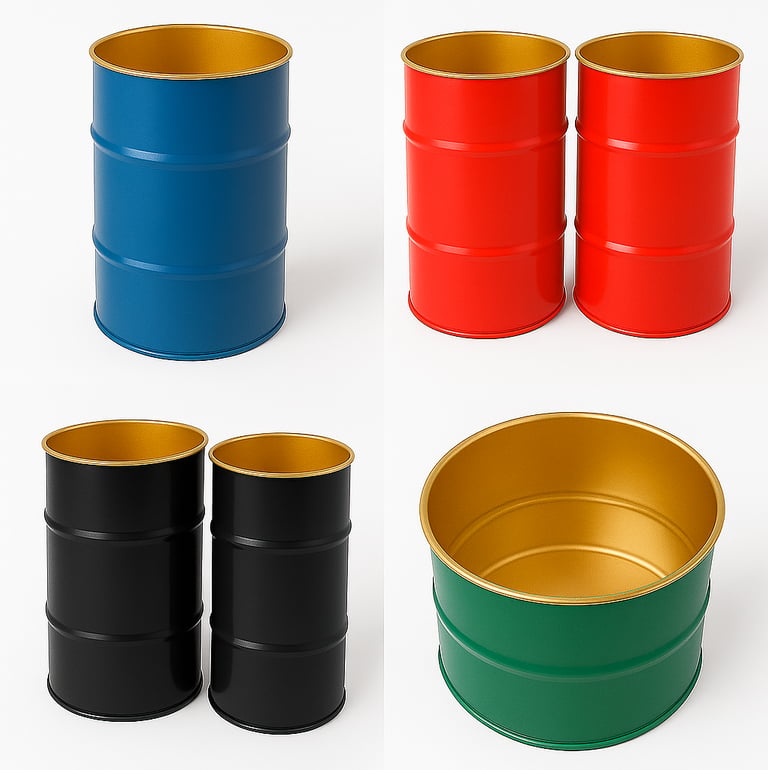

Epoxy Coated MS Drums

Designed for sensitive materials like food-grade chemicals, pharmaceuticals, and corrosive liquids, our Epoxy Coated MS Drums feature highly durable internal linings that prevent metal contamination and extend product shelf life.

Manufacturing Specifications:

Height Range: 9" to 28"
Diameter Range: 11" to 18"
Die Sets Used: 11" to 18"
Coating Thickness: 5–10 microns (as per client requirement)
Types of Internal Coating:
- Food-grade Epoxy
- Chemical-resistant Phenolic
- Dual Layered Coating (for specialty chemicals)

Key Features:

Lined in controlled-temperature epoxy curing ovens
Free from pinholes, blisters, or uneven thickness
Excellent resistance to acids, solvents, and corrosion
Batch testing available for coating integrity
